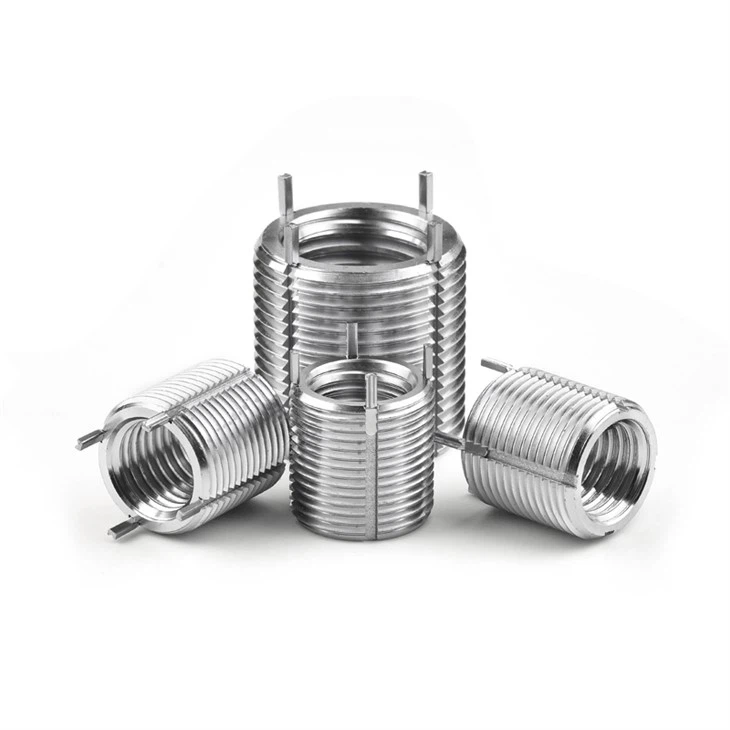

Metric Key Locking Inserts Specification,KEENSERTS with UNC or UNF Threads

Metric Key Locking Inserts Specification,KEENSERTS with UNC or UNF Threads

Key Locking Inserts Specification-Metric Stainless Steel Key Locking Inserts Carbon Steel Key Locking Threaded Inserts Metric Key locking Inserts Specification - Thin Wall Metric Key locking Inserts Specification - Heavy Duty

Product Details

Key Locking Inserts Specification-Metric

Stainless Steel Key Locking Inserts

Carbon Steel Key Locking Threaded Inserts

Metric Key locking Inserts Specification - Thin Wall

Part Number

InsertInstallation

Carbon Steel

Stainless Steel

Internal Thread Class 6H

External Thread Class 6g

Length L

Tap Drill Size

C’sink Dia.

Thread Tap

Size Class 6hMin. Depth

25951

26351

M 5x0.8

M 8x1.25

8

6.9

8.25

M 8x1.25

9.5

25952

26352

M 6x1.0

M 10x1.25

10

8.8

10.25

M 10x1.25

11.5

25953

26353

M 8x1.25

M 12x1.25

12

10.8

12.25

M 12x1.25

13.5

26153

26553

M 8x1.0

M 12x1.25

12

10.8

12.25

M 12x1.25

13.5

25955

26355

M 10x1.5

M 14x1.5

14

12.8

14.25

M 14x1.5

15.5

26155

26555

M 10x1.25

M 14x1.5

14

12.8

14.25

M 14x1.5

15.5

25956

26356

M 12x1.75

M 16x1.5

16

14.75

16.25

M 16x1.5

17.5

26156

26556

M 12x1.25

M 16x1.5

16

14.75

16.25

M 16x1.5

17.5

Metric Key locking Inserts Specification - Heavy Duty

Part Number Carbon Steel

Part Number Stainless Steel

Insert

Installation
Internal Thread Class 6HExternal Thread Class 6gLength LTap Drill SizeC'sink DiameterThread Tap
Size Class 6hMin.Depth

25963

26363

M 4x0.7

M 8x1.25

8

6.9

8.25

M 8x1.25

9.5

25964

26364

M 5x0.8

M 10x1.25

10

8.8

10.25

M 10x1.25

12.5

25965

26365

M 6x1.0

M 12x1.25

12

10.8

12.25

M 12x1.25

14.5

25966

26366

M 8x1.25

M 14x1.5

14

12.8

14.25

M 14x1.5

16.5

26166

26566

M 8x1.0

M 14x1.5

14

12.8

14.25

M 14x1.5

16.5

25967

26367

M 10x1.5

M 16x1.5

16

14.75

16.25

M 16x1.5

18.5

26167

26567

M 10x1.25

M 16x1.5

16

14.75

16.25

M 16x1.5

18.5

25969

26369

M 12x1.75

M 18x1.5

18

16.75

18.25

M 18x1.5

20.5

26169

26569

M 12x1.25

M 18x1.5

18

16.75

18.25

M 18x1.5

20.5

25970

26370

M 14x2.0

M 20x1.5

20

18.75

20.25

M 20x1.5

22.5

26170

26570

M 14x1.5

M 20x1.5

20

18.75

20.25

M 20x1.5

22.5

25971

26371

M 16x2.0

M 22x1.5

22

20.5

22.25

M 22x1.5

24.5

26171

26571

M 16x1.5

M 22x1.5

22

20.5

22.25

M 22x1.5

24.5

26172

26572

M 18x1.5

M 24x1.5

24

22.5

24.25

M 24x1.5

26.5

25973

26373

M 20x2.5

M 30x2.0

30

28

30.25

M 30x2.0

34.5

26173

26573

M 20x1.5

M 30x2.0

30

28

30.25

M 30x2.0

34.5

26174

26574

M 22x1.5

M 32x2.0

32

30

32.25

M 32x2.0

36.5

25975

26375

M 24x3.0

M 33x2.0

33

31

33.25

M 33x2.0

37.5

26175

26575

M 24x2.0

M 33x2.0

33

31

33.25

M 33x2.0

37.5

Welcome to buy the metric key locking inserts specification,keenserts with unc or unf threads in stock from our factory. As one of the leading threaded inserts manufacturers and suppliers in China, we can assure you of the high quality of our products made in China.
