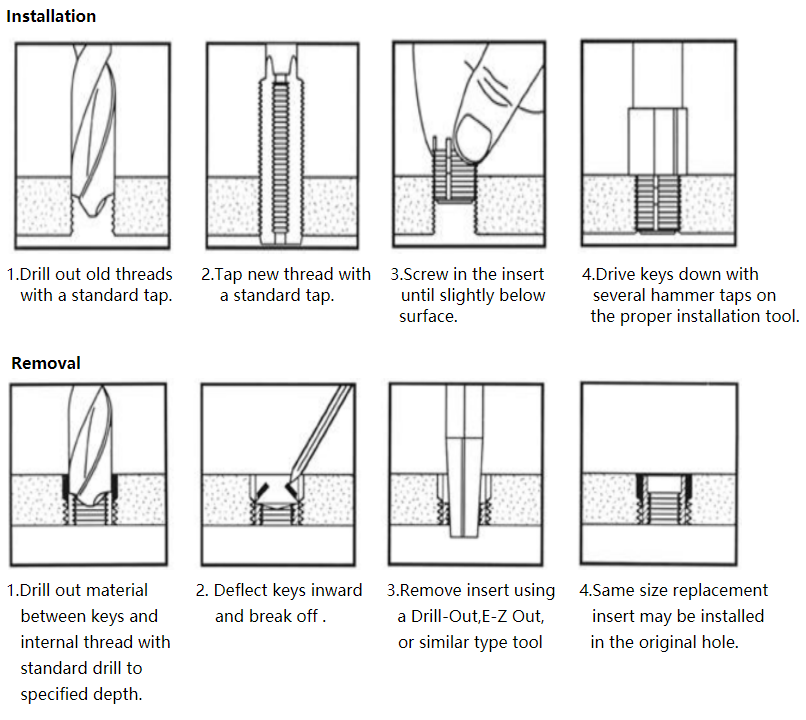

Key locking Threaded Insert is used to quickly repair stripped, damaged or worn out threads with new stronger thread or for use in original equipment. Inserts are easy to install and easy to remove. No special drills, taps or prewinder tools are required. The Keys are driven down into the thread of the surrounding base material, locking the insert in place. ABA can produce Keylocking Threaded Inserts to meet your special requirements .

Material: In Carbon Steel - C1215 or equivalent

In Stainless Steel - 303 or equivalen

Keys - 302 CRES or equivalent

Finish: Carbon Steel - Zinc Phosphate

Stainless Steel - Passivated

Tolerances: ±.010 inch or ±.25 mm unless specified otherwise.

Features:

• No tang to break-off

• No pre-winder tool required

• Easy installation and removal

• Installed with standard drills and taps

• May be used in many types of material

• Keys supply a positive mechanical lock against rotation

• Industrial Style inserts can be purchased in bulk quantities or kits

Typical Applications:

• Trucks, RVs

• Machinery, Small Engines

• Molds, Tool and Die

• MRO Tasks

Technical Parameters :

Heavy Duty - Metric Series
PART NUMBER		INSERT			INSTALLATION					REMOVAL
Carbon Steel	Stainless Steel	Internal Thread Class 2B	External Thread (Mod.) Class 2A	Length	Installation Tool Part No.	Tap	C'Sink -.000	Thread Tap		Drill
								Size Class 2B	Min. Depth	Size	Depth
25963	26363	M 4x0.7	M 8x1.25	8.0	24763	6.9	8.25	M 8x1.25	9.5	5.50	4.00
25964	26364	M 5x0.8	M 10x1.25	10.0	24764	8.8	10.25	M 10x1.25	12.5	7.50	4.75
25965	26365	M 6x1.0	M 12x1.25	12.0	24765	10.8	12.25	M 12x1.25	14.5	9.50	4.75
25966	26366	M 8x1.25	M 14x1.5	14.0	24766	12.8	14.25	M 14x1.5	16.5	11.50	4.75
26166	26566	M 8x1.0
25967	26367	M 10x1.5	M 16x1.5	16.0	24767	14.75	16.25	M 16x1.5	18.5	13.50	4.75
26167	26567	M 10x1.25
23596	26369	M 12x1.75	M 18x1.5	18.0	24769	16.75	18.25	M 18x1.5	20.5	15.50	4.75
26169	26569	M 12x1.25
25970	26370	M 14x2.0	M 20x1.5	20.0	24770	18.75	20.25	M 20x1.5	22.5	17.50	4.75
26170	26570	M 14x1.5
25971	26371	M 16x2.0	M 22x1.5	22.0	24771	20.5	22.25	M 22x1.5	24.5	17.75	6.35
26171	26571	M 16x1.5
26172	26572	M 18x1.5	M 24x1.5	24.0	24772	22.5	24.25	M 24x1.5	26.5	19.75	6.35
25973	26373	M 20x2.5	M 30x2.0	30.0	24773	28.0	30.25	M 30x2.0	34.5	25.75	6.35
26173	26573	M 20x1.5
26174	26574	M 22x1.5	M 32x2.0	32.0	24774	30.0	32.25	M 32x2.0	36.5	27.75	6.35
25975	26375	M 24x3.0	M 33x2.0	33.0	24775	31.0	33.25	M 33x2.0	37.5	28.75	6.35
26175	26575	M 24x2.0

FQA

Q1: Are you trading company or manufacturer ?

A1: We are manufacturer since 2004 in Shen zhen ,China .

Q2: Do you have stock for items ?

A2: Yes , most of items are in stock for shippment .

Q3: How long is your delivery time?

A3: Generally it is 1day for stock item,10-15 days for custom items or big quantity over 50000 pcs .

Q4: Can you provide samples ? is it free or extra ?

A4: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5. What about the payment terms?

A5: Generally 100% T/T in advance before shippment or mass production ,and we can also consult according to your requirement.

Q6: What's your advantage?

A6: The competitive prices, fast delivery and high quality. responsible-oriented employees strict tolerance, smooth finish and long- life performance.

Q7: What are your machining equipment?
A7: CNC milling machines, CNC turning machines, stamping machines,grinding machines,automatic lathe machines, tapping machines, grinding machines,screw machines, cutting machines and so on.

Q8: How to guarantee the Quality of Industrial Parts?

A8: We have been in fastener field over 15 years with full experience. And there are 5 checks in the whole processing, We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts production.
