Self-Tapping Thread Inserts In Steel Stainless and Carbon steel

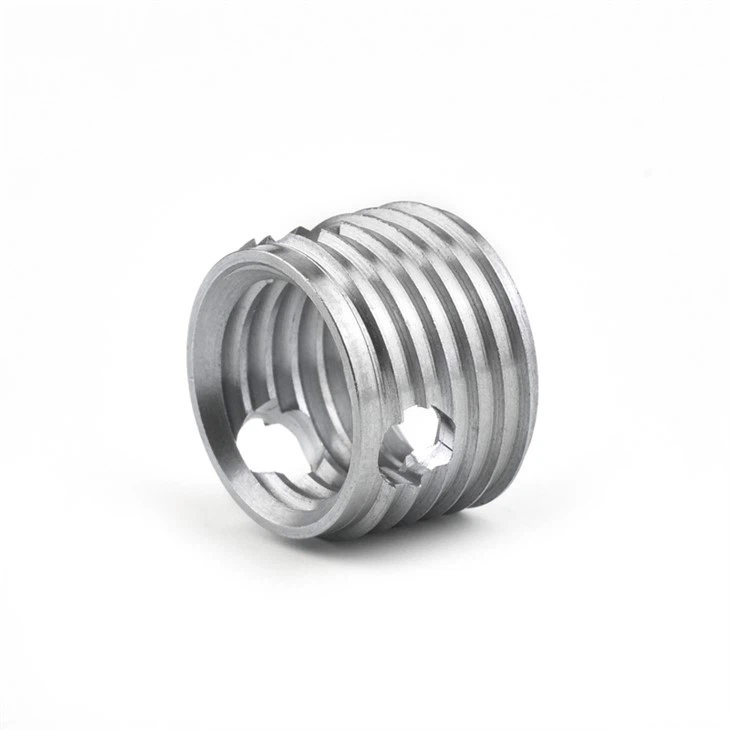

Self-tapping thread inserts in steel stainless and carbon steel are screwed into preformed or predrilled holes and cut their own threads into the wall for permanent installation. Eliminates the time and expense of tapping. Provides a strong wear and vibration resistant thread. The steel inserts are hardened with a zinc and clear chromate finish. Stainless are type 303. Can be installed with hand installation tools. Hole size listed is for reference only. Optimum hole size to be determined through experimentation. A 60 degrees countersink is required for flush mounting. For use in aluminum, aluminum alloy, magnesium and mild steel.

It is suitable for installation in the following materials:

- Light alloys

- Cast iron, brass, bronze NF metals

- Plastics, laminates

- Hardwoods


Material & Finish :

-Stainless steel 303, passivated

-Carbon steel, zinc-plated, yellow chromated

Other materials, designs and finishes on request ：

-Brass

-Carbon steel, zinc-plated, blue passivated

-Carbon steel, zinc/nickel plated, transparent passivated

Technical Parameters ：

Dimensions in mm

Metric Series
Carbon Steel Part No.	Stainless Steel Part No.	Internal Thread	External Thread		Length	Guideline values for receiving hole diameter	Minimum borehole depth for blind holes
Carbon steel（1215）	SUS303	A	E	P	B	L	T
307030001	307030002	M3	5	0.6	4	4.7 to 4.8	6
308030001	308030002	M3	5	0.6	6	4.7 to 4.8	8
307035001	307035002	M3.5	6	0.8	5	5.6 to 5.7	7
308035001	308035002	M3.5	6	0.8	8	5.6 to 5.7	10
307040001	307040002	M4	6.5	0.8	6	6.1 to 6.2	8
308040001	308040002	M4	6.5	0.8	8	6.1 to 6.2	10
307050001	307050002	M5	8	1	7	7.6 to 7.7	9
308050001	308050002	M5	8	1	10	7.6 to 7.7	13
307060001	307060002	M6	10	1.25	8	9.5 to 9.6	10
308060001	308060002	M6	10	1.25	12	9.5 to 9.6	15
307080001	307080002	M8	12	1.5	9	11.3 to 11.5	11
308080001	308080002	M8	12	1.5	14	11.3 to 11.5	17
307100001	307100002	M10	14	1.5	10	13.3 to 13.5	13
308100001	308100002	M10	14	1.5	18	13.3 to 13.5	22
307120001	307120002	M12	16	1.75	12	15.2 to 15.4	15
308120001	308120002	M12	16	1.75	22	15.2 to 15.4	26
307140001	307140002	M14	18	2	14	17.2 to 17.4	17
308140001	308140002	M14	18	2	24	17.2 to 17.4	28
307160001	307160002	M16	20	2	14	19.2 to 19.4	17
308160001	308160002	M16	20	2	24	19.2 to 19.4	28
307180001	307180002	M18	22	2	18	21.2 to 21.4	21
308180001	308180002	M18	22	2	24	21.2 to 21.4	28
308200001	308200002	M20	26	2	27	25.2 to 25.4	31
308220001	308220002	M22	26	2	30	25.2 to 25.4	34
308240001	308240002	M24	30	2	30	29.2 to 29.4	34

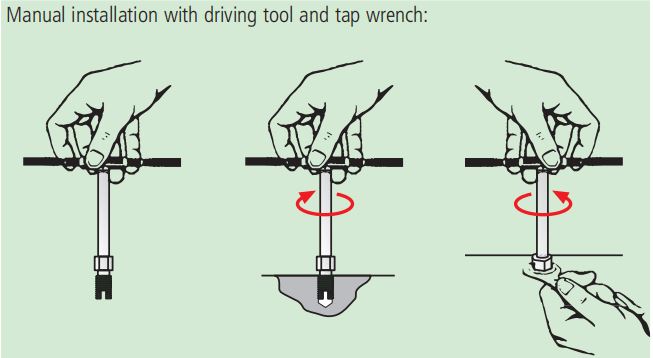

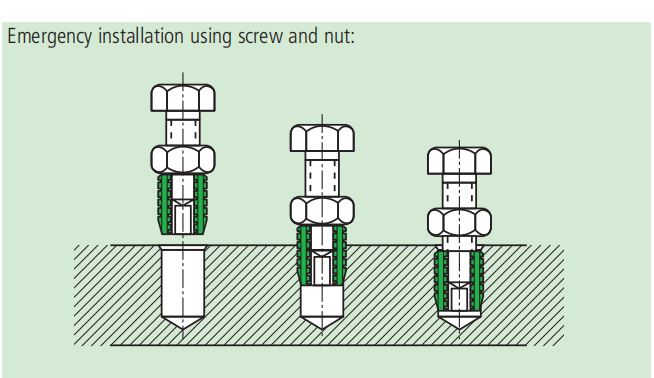

Manual installation:

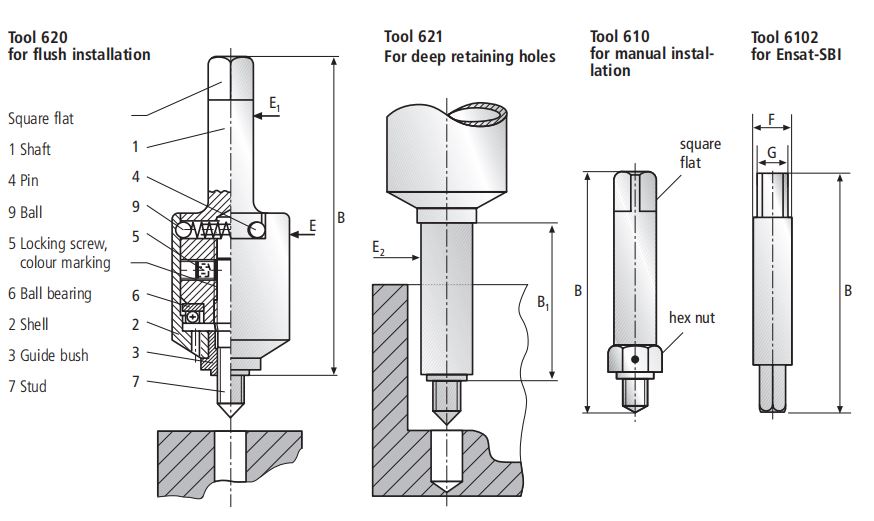

Manual driving takes place using the driving tools 620, 621 or 610 and a tap wrench:

1. Drill the hole: see page 6 for the correct diameter, countersink if necessary.

2. Screw the Ensat onto the driving tool with the cutting slot or cutting bore pointing downwards.

3.Drive in the Ensat until appr. 0.1 -0.2 mm below the surface of the workpiece. When using tool 620 and 621,the rotatable shell must rest against the externally visible stop pins in such a way that it is driven round clock- wise by the pins.

Draving tools:
